A Few Words On DC And AC: What Exactly Are They?

A few disorganized concepts about direct and alternate current.

There are two main variations of the electrical current: the Direct Current, or DC, and the Alternate Current, or AC. But what does that mean?

The DC is the one you obtain when you power a device using batteries, for example. Batteries provide what is called Direct Voltage and that generates a Direct Current once applied to an electric circuit. If we draw a diagram of the voltage and, correspondingly, the current that flows in a circuit powered with DC, here is what we obtain:

This diagram basically tells us that the value of the voltage, and of the current, does not change over time. We usually define the current as flowing from the positive to the negative pole of the battery and that flow never changes over time.

The AC works like the DC, going from the positive to the negative voltage. The difference is that the voltage keeps switching: positive becomes negative and then becomes positive again, and so forth. And so the current keeps changing its direction accordingly.

Also, the AC does not change suddenly back and forth, but it does that progressively, following a shape called sine wave. All electrical energy distributed in our homes has this shape.

In USA, the AC current changes direction 120 times per second, which means that in one second there are 60 full periods of the sine wave. We say that the frequency of the current is 60 Hertz, abbreviated 60 Hz.

In Europe, 50 Hz is used instead. Other parts of the world either use one or the other.

The AC voltage is the one created in the power plants and provided, for example, at the wall outlets in your house by the energy service provider.

The voltage at the outlet is not constant as the one in the batteries. Instead, it changes continuously following the shape of a sine wave. Because of that, the polarity at each electrode of the outlet changes over time from positive to negative and vice versa, following the shape of the sine wave.

So, when we connect a device to the electric outlet, the current that will flow through that device will be an AC current as well.

The sinusoidal shape of the AC voltage depends on the way the electricity is generated. In the power plants, there are devices called alternators, a much bigger version of those that you can find inside your car to recharge its battery, or on a bike, to provide electricity to turn on the lights at night.

Depending on the power plant, a different kind of energy is used to put in motion the alternator. It could be fossil fuel or nuclear energy that heat a reservoir of water and create the steam that makes the alternator rotate. Or it could be the rotation of a propeller-like device that is put in motion by the wind.

Whatever is the source of the mechanical energy, the alternator converts that energy in electrical energy. But, since the rotation translates into a sine wave when described on a Cartesian reference system, the resulting electrical energy acquires that shape too.

But, why do we need both forms of voltage, DC and AC?

First of all, DC voltage is necessary to power up any electronic device, from your TV to your smartphone or radio or computer.

AC voltage, from the electrical engineering perspective, is used to transmit the electrical energy from the places where it is created to the places where it is used.

Back to the time where the first experiments of electricity transmission were conducted, there was a famous diatribe between Thomas Edison and Nikola Tesla.

Edison believed that the safest way to transmit electricity was to do that with cables powered with DC current.

Tesla argued that it was better to use AC current because it allowed much less waste of energy during the transportation, thanks to the fact that it is easier to convert the voltage from a low value to a higher one and vice versa, when using AC. And it is also very simple to convert the AC into DC when DC is needed, through a process called rectification.

As history tells us, Tesla won that battle, rightfully. And so, today, AC is used to bring the electrical energy to our homes from the power plants.

A Few Facts On Coulomb’s Law

A few words on the modern interpretation of Coulomb’s Law in terms of Fields Theory.

At the base of all the electromagnetism theory lays Coulomb’s Law, which describes why and how charges move in a medium, whether the medium is a conductor or the void.

Electrical and Electronics engineers are therefore supposed to be very familiar with this law. Let’s spend some time to provide a few important facts of the law. For that, we have to go back to the concept of ‘field’.

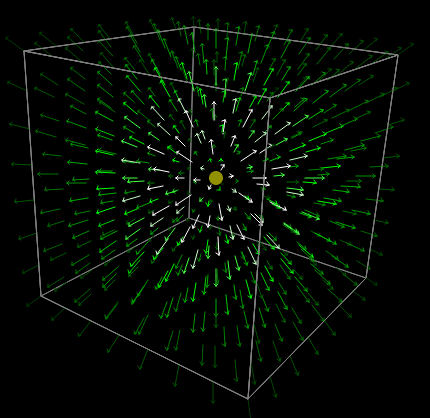

In modern physics, we usually tend to identify the effect of an entity over another entity with the name of field. Mathematically speaking, a field is a 3-dimensional matrix that assigns a specific value, usually a vector, to each point in the observed space.

Each time we put in that space an object capable of reacting with the field, we end up with a force applied to that object that is the product of the field in that point and the measurable value of that object.

So, in the case of charges, a single charge creates a field in the surrounding space. When we put in that space a second charge, the new charge will be subject to a force that is the product of the charge itself and the value of the field in that point in space.

Because charges can repel or attract, depending on their positive or negative sign, the field itself is directional, and therefore represented with vectors..

Here is a picture representing a field generated by a positive charge:

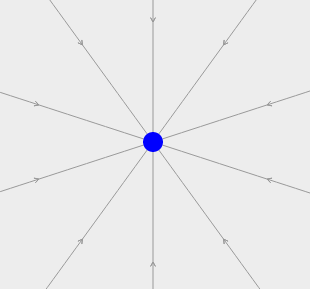

And here is a picture representing a field generated by a negative charge:

If the charge creating the field is Q, then the field can be represented by the following equation:

where E is the value of the field, actually the module of the field vector, and r is the distance from the charge of a point in space where the field is calculated. The constant ε0 is called “dielectric constant” and, in this formula, it assumes that the charge is located in the void or in thin air. An adjustment to the constant needs to be made when the medium is different.

We call this field an Electrostatic field, hence the E, because the charge that generates it does not move, it is static.

The force on a charge q put in the field can be calculated as:

And, since E is actually a vector, F is therefore also a vector.

If we want to represent this in actual vector format, we can write it as:

where

is the position vector of the charge q with respect to the charge Q. This is what is called Coulomb’s Law.

You can see that if the charges are both positive or both negative, the vector F is oriented such that the charge q moves away from the charge Q and, vice versa, when the charges have opposite sign, F is oriented toward Q.

That is exactly what we expected: charges of the same sign repel each other and charges of opposite sign attract each other.

As a further example, here is the graphical representation of an electrostatic field generated by two charges of opposite sign:

… and finally an electrostatic field generated by two charges of the same sign:

Let’s Talk About Voltage

What is voltage? Where the name comes from? How it makes electric current flow?

transmission_lines_scaled

Voltage is a very common word in the context of electrical and electronics engineering. However, common as it is, it is a concept that is often not fully understood.

How many people know that voltage is a concept related with potential energy? The same kind of energy that is so often used in mechanical physics!

When we talked about electrical current in the previous post, we said that current moves from a higher electrical potential energy to a lower one. We also defined the current as the flow of positive charges moving from the positive electrical potential energy to the negative one.

charges_in_wire

In order for the charges to move, there has to be a force that puts them in motion in a specific direction. Such force will have to do some sort of work on the charges and the work done by the force can be translated in a change in energy of the charges.

We define Electromotive Force the ratio between the energy change of the charges and the amount of charges. This can be represented with the following formula:

emf

Note that, despite the name, the Electromotive Force is not a force in the mechanical sense. Instead it is a potential energy per unit of charge, which we also call electric potential, or just potential.

The unit for the emf is called Volt, and is the ratio between one unit of energy, or 1 Joule, and one unit of charge, or 1 Coulomb:

volt

And that’s where the name voltage comes from: it is a name derived from the measurement unit of the electric potential. Although the correct name is electric potential, to make things easier in the day to day talk, we just call it voltage.

So, again, what is voltage? The voltage is the difference of electrical potential energy that allows a unit of charge to move and produce a current.

Now, do you think it is correct to say that when there is voltage we have a current? Do the two things always go together? Well, the answer is no. You can actually have one without the other.

An example of voltage without a current is the battery. If you don’t connect the battery to a circuit, there is no current involved!

batteries

And what about the current? This example is definitively less intuitive. So, let’s just say for now that if we force a current in a ring of a special material called superconductor and then we remove the cause that generated the current, the current keeps flowing in the superconductor, even in the absence of a voltage. Maybe we can explore this concept a little more in a future post, if I see there is an interest for it. Translation: let me know what you think! Comments are always welcome!

superconductor_ring

Let’s now go back to the battery. The battery provides a voltage between its positive and negative poles. With that, if we connect the battery to an electric load, current starts to flow immediately and the higher the voltage the greater the amount of current (more on that in a future post).

current_with battery

Like the current, there are two forms of voltage:

  1. The DC voltage

  2. The AC voltage

The DC voltage is the one typically provided by batteries. It is a voltage of a fixed value and of fixed polarity. The plus and minus on the electrodes of the battery never change. One electrode will always be the positive one, and the other electrode will be the negative one.

dc

When we connect a battery to an electric circuit, we have a flow of DC current.

The AC voltage is the one created for example in the power plants and provided at the wall outlets in your house.

power_plant_scaled

outlet_scaled

The voltage at the outlet is not constant as the one in the batteries. Instead, it changes continuously following the shape of a sine wave. Because of that, the polarity at each electrode of the outlet changes over time from positive to negative and vice versa, following the shape of the sine wave.

sine_wave

When we connect a device to the electric outlet, the current that will flow through that device will be an AC current as well.

The sinusoidal shape of the AC voltage depends on the way the electricity is generated. In the power plants there are devices called alternators, a much bigger version of those that you can find inside your car to recharge the battery, or on a bike, to provide electricity to turn on the lights at night.

Depending on the power plant, a different kind of energy is used to put in motion the alternator. It could be fossil fuel or nuclear energy that heat a reservoir of water and create the steam that makes the alternator rotate.

big_alternator_scaled

Or it could be the rotation of a propeller-like device that is put in motion by the wind.

propeller

Whatever the source is of the mechanical energy, the alternator converts that energy in electrical energy. But, since the rotation translates into a sine wave when described on a Cartesian reference system, the resulting electrical energy acquires that shape too.

DC and AC are both necessary to us to power devices that make our lives easier. Some devices need to be powered with DC, others need the AC.

DC voltage is necessary, for example, to power electronic devices: your smartphone or radio or computer, for example.

AC voltage is used to transmit the electrical energy from the places where it is created to the places where it is used. When AC reaches our home, it can be used as is to power electric motors like those in the refrigerator or the washing machine, or other household appliance. Or it can be converted to DC to power other devices, like your TV set.

Summarizing:

  1. To generate a current, we need to provide some energy to the charges in the conductor.

  2. The potential energy per unit of charge is called emf, or electromotive force. That measures the capability of the generator (a battery, for example) of generating a current.

  3. Most used synonyms of the emf are: voltage, difference of potential, and potential. Somebody also uses the name “tension”.

  4. The measurement unit of the potential is the Volt, which is the potential energy of 1 Joule per unit of charge, or 1 Coulomb.

  5. The Volt is a differential measure, not an absolute one. You always measure Volts with respect to a point that we arbitrarily define as 0V, or ground.

  6. Emf can be DC or AC and, correspondingly, it can generate a DC or an AC current when connected to an electrical circuit.

  7. DC voltage is normally generated through chemical reactions in a battery, or can be obtained from the AC through a process called “rectification”.

  8. AC voltage is normally generated with alternators like those used in power plants.

If you want to know more on this topic, I suggest you to watch the companion video of this article, which I posted on my YouTube channel:

https://www.youtube.com/watch?v=vPX-B4xAdtk

Thank you for reading this article and, as always,

Happy Experiments!
