Back To Basics Episode 3: The 6 Essential Tools For Your First Electronic Lab

Hi there, welcome back to the “Back to Basics” series.

So you’ve decided to dive into electronics. You’re watching tutorials, you’re looking at schematics, but then you hit the wall: what tools do I actually need, and where do I start without spending a fortune? That’s the biggest barrier for everyone.

Today, we’re building your first electronics workbench. We’re going to break down the six most essential pieces of gear—from the absolute must-haves to the powerful diagnostic equipment you’ll eventually crave.

I’m structuring this into three simple tiers, to make it progressive.

Tier 1: The Must-Haves, which are the stuff you need on Day 1 to even build a circuit.

Tier 2: The Essential Builder Stuff or how to make your project permanent.

Tier 3: The Diagnostic Duo or how to troubleshoot and see signals you can’t see with your eyes. That’s for when you need to actually see the electricity doing its thing.

Let’s start building!


Tier 1 – The Absolute Must Have: The Prototyping Pair

Let’s dive into tier one. The prototyping pair. First up, the breadboard, your best friend for starting out. It’s basically a temporary solder-less lab.

It will let you try things out, make mistakes, swap components. Basically: super fast iteration.

The key thing to get, though, is how it’s wired internally. Those middle columns, they connect vertically. Little strips of metal inside. You plug your component legs into different rows in the same column, and they’re connected.

Those long strips on the sides, the power rails, run horizontally all the way from left to right. Knowing that difference saves hours of confusion. So vertical columns for components in the middle, horizontal rows for power on the sides. Simple when you know it.

Once you’ve built something, you need to check if it actually works or why it doesn’t. Which brings us to the second must-have in Tier 1, the digital multimeter, or DMM. The Swiss Army Knife. You just can’t debug what you can’t measure. It’s fundamental. Safety, too. Measures voltage, current, resistance, the basics.


Tier 2 – The Essential Builder: Permanent Connections

Let’s now move on to Tier 2, the essential builder.

So your breadboard circuit works perfectly. Awesome. But now you want to make it permanent. Put it on a proper PCB or maybe a perf board. And that means soldering. You need a soldering iron and you need solder. This is where things get hands on. But what iron to use? There’s so many types.

The key thing is temperature control. You need to be able to set the right temperature for your soldering components. Too cold, and you obtain bad joints. Too hot, and you damage the components.

And then you need the proper technique. This is where people often mess up, big time. The absolute number one rule is: melt the solder with the components to attach together, not with the solder tip. You touch the hot iron tip to both the component leg and the copper pad on the board at the same time. You hold it there for a couple of seconds, just long enough for them both to get hot. Then you touch the solder wire to the joint, not to the iron tip. And the heat from the pad and the leg melts the solder, making it flow nicely around them. You’re aiming for that classic shiny volcano shape, a little cone. Not a dull blob. Definitely not a dull blob. Dull or lumpy means a cold joint, which will probably fail later.

Also, always use a fan or work in a well-ventilated area. Those fumes aren’t good for you.


Tier 3 – The Diagnostic Duo: Seeing The Unseen

Now tier three, the diagnostic duo. This sounds more serious. Well, it is, in a way. This is for when you move beyond simple DC circuits into things that change over time, like audio signals or digital clocks.

First in the list is the function generator, or the signal injector. Its job is basically to create predictable electrical signals.

Known, clean waveforms, usually sine waves for analog stuff, square waves for digital, maybe triangle waves for ramps. Why is that necessary? Can’t you just use the signal from, say, the phone’s headphone jack? You could, but is that signal perfectly clean? Does it have noise? Is its amplitude exactly what you think? A function generator gives you a reliable, known-good input. So you’re eliminating unknown variables.

If you test a filter circuit with a perfect sine wave from the generator and the output looks wrong… Then you know the problem is in your circuit, not just some garbage coming in. It’s about controlled testing.

And now the function generator partner, the oscilloscope. The big gun. This is arguably the most powerful debugging tool in electronics. It lets you see electricity.

It draws a graph. Voltage on the vertical axis, time on the horizontal. So you can see exactly how a signal changes, millisecond by millisecond or even faster. So you can see noise, distortion, timing glitches. Things way too fast for a DMM.

And the key to using it effectively, the thing that unlocks its power, is the trigger control. It just tells the scope when to start drawing the waveform on the screen.

It looks for a specific voltage level on the signal. So every time the signal hits, say, one volt while rising, the scope starts drawing from that exact point. And because it starts drawing at the same point on the waveform over and over, that fast-moving signal looks like it’s standing perfectly still on the screen. Makes analysis possible.

So you hook the function generator output, like a 1 kHz sine wave, to your circuit input and then probe the output with the oscilloscope. And you can see precisely how your circuit affects that signal, stable and clear, thanks to the trigger. That’s how professionals diagnose high-speed problems.

Conclusion

Let’s recap quickly, by function.

Tier 1, the must-haves for prototyping are the breadboard and the DMM.

Tier 2, the essential builder for making it permanent, is the soldering iron and the solder. And don’t forget the ventilation!

Tier 3, the diagnostic duo for seeing the unseen signals, are the function generator and the oscilloscope.

That’s the core toolkit for your lab.

The really crucial takeaway is that you don’t need everything on day one. It’s scalable.

Start with Tier 1. Get comfortable prototyping. Then, when your projects demand permanence, you move to Tier 2.

And only when you’re dealing with signals where timing and shape really matter, like building an audio filter or maybe something with a micro-controller, you invest in Tier 3 for that deeper diagnostic view.

Start small, build your skills, and let your projects guide how you grow your lab. Build it organically.

You don’t need everything at once!

Finally, here is the link to the companion YouTube Video, which you may want to watch for additional details.

Behind The Scenes Of The Theremin Design

How I design my electronic circuits and prepare the videos to show them to you.

20180915_153351

Did you ever ask yourself where I get the schematics of the Theremin circuits and other gadgets that I present on my YouTube videos? The answer is simple: I do some research on books, on specialized magazines and on the Internet. I see solutions created by other people, if any, and then I think about what would better work for my case. Sometimes it ends up to be a modification of something that somebody else did, maybe for a totally different purpose. Sometimes, I just use the general idea to create something different, new, my own design that is more appropriate for my needs.

20181213_105525

Either way, I usually build a number of prototypes of what I need, then I take some measurements in lab, then I start making further modifications to my original design, until I obtain exactly what I am looking for.

20181213_105610

Also, more often than not, I figure that the circuit I am testing is too sensitive to certain parameters of the circuit itself. Maybe is a capacitor which value needs to be adjusted a little bit, or a connection between two or more components that causes issues because of capacitive or inductive coupling with other components. That is when I try to change my design to reduce such sensitivities, so that the circuit can be assembled by anyone with the exact same results as mine. And this is what is called engineerization, or adjusting the design for mass production.

20180915_153412

And sometimes, to do so, it is not enough to test the single circuit. Instead, I need to connect the circuit with other pieces that have to work together with it, and see if further unwanted interactions happen, so that I can eliminate them or, at least, reduce them so that they become negligible.

20180915_153256

Sometimes this process goes fast, sometimes takes a long time. And that’s why my videos are not published at fixed intervals. Unfortunately, since this is done only as a hobby, I don’t always have enough time to dedicate to my project, so days go by until, finally, I am done. Then I finalize my schematics, I build the last prototype and the final product and, in the process, I also record all these activities so I can end up making a video out of them.

20180915_153313

Then the video editing process starts and, once the video is finally ready, I release it on YouTube for you to watch it.

One day I will be able to do this full time. Who knows, maybe when I retire. Or, maybe, if you all give me a hand, this could become my new full time job (donations, donations, donations). We’ll see.

Thank you for reading this article. And, as usual, happy experiments!

Experimentation Boards

How to experiment with electronic components to try new things and test your designs

It comes the time where you want to do some experiments to learn how a specific circuit works or to test a new circuit that you are designing.

Fundamentally, there are two options for you:

  1. Use a perforated board where you can solder the components to build the circuit you want to test.
  2. Use a solder-less breadboard, which allows you to build the circuit you need and, later, dismantle it without any damage to the components you used.

There is actually a third possibility, which is to use a PCB, or Printed Circuit Board. However, I will not consider that right now. PCB are normally used in later stage of development, when you are ready to put your design in a more definitive form. Using a PCB board at the early stages of design is not convenient, due to the cost and time needed just to produce the board itself over and over again, until you are satisfied with your design.

Personally, when I am in the first stages of a new design, and I need to try  a new piece of electronic circuit, I prefer to use a solder-less breadboard, which allows me to modify the circuit at will while I test different versions of it.

02_DSC00020

Once I am satisfied with the design and I need to build my first real prototype, I then use a perforated board. In this case I lay down all the components on one side of it, normally the one with no metallic pads, and then I solder the components on the other side, where the metallic pads are located. At the same time I start running the cables from the lead of one component to another, to make all the electric connections between components.

02_DSC00027

If what I need is just one circuit for personal purposes, then I might as well end it right there, leaving the circuit on the perforated board. But if I needed to build several of those circuits, then I start thinking of manufacturing a PCB. But this is a subject for another time.

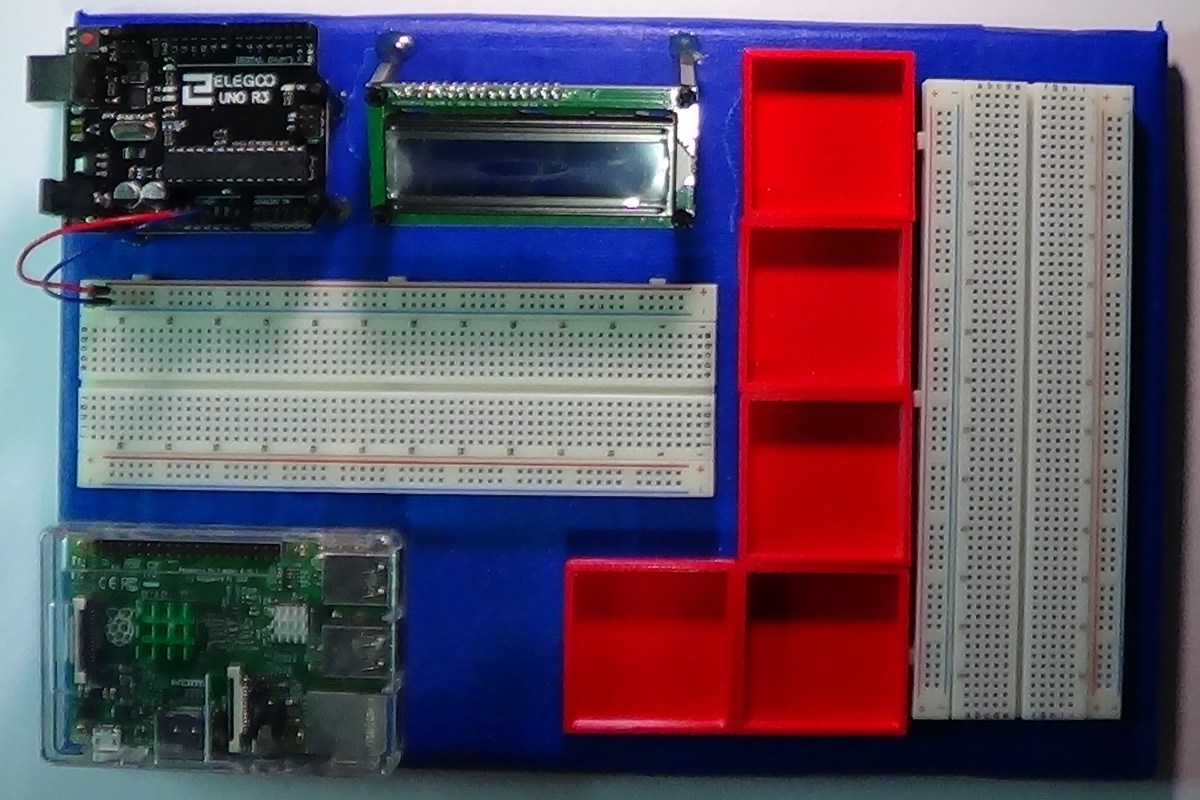

Since I work a lot with Arduino and Raspberry Pi boards, I have also created my own version of experimentation board, which is basically a piece of cardboard that I covered with blue tape, with  a bunch of stuff glued to it: a couple of breadboards, an Arduino Uno, a Raspberry Pi, and a small LCD display. I also added a few little trays to temporarily place some components needed to build the circuit, or to hold bigger components that are part of the project and cannot fit on the breadboards.

02_DSC00023

This configuration allows me to build my experimentation circuits in a neat way, without having too many things lying around on the workbench. It is very easy to move around the built circuit when it is done on such a custom board.

(Watch the video on YouTube: https://www.youtube.com/watch?v=Wv7kVVZvULA&t=13s)
